Multi-tank series

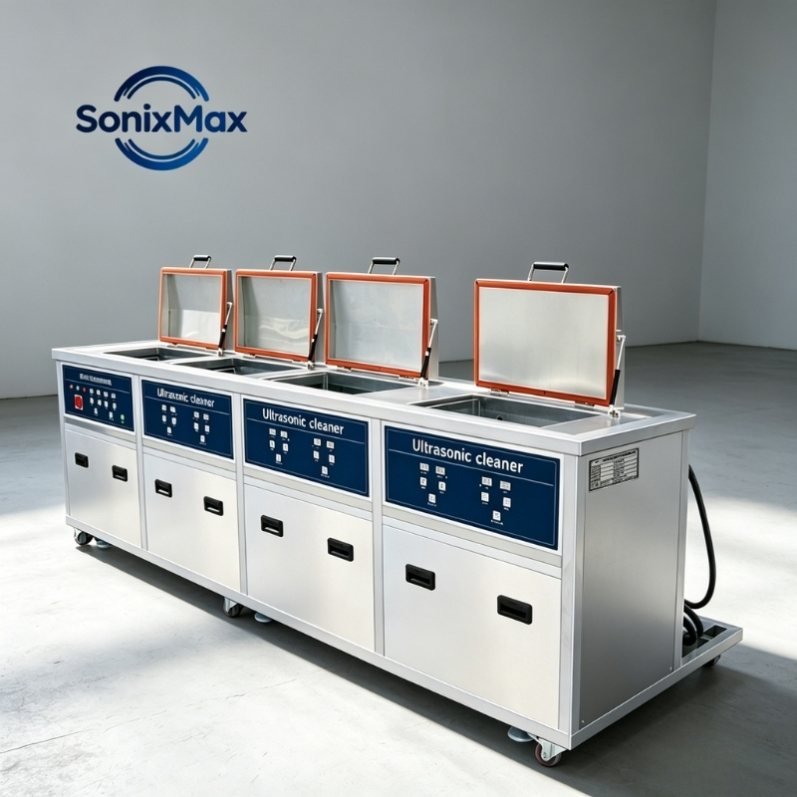

Industrial Quadruple-Tank Ultrasonic Cleaner (Cleaning & Filtration + Dual Rinsing + Drying)

Available in capacities from 45L to 1500L, the series is a high-specification quadruple-tank system engineered for industries industries requiring higher cleanliness control. By integrating a primary ultrasonic cleaning stage with continuous filtration, two sequential rinsing stages, and a high-temperature drying chamber, this series helps reduce contaminants, chemical residue, and residual moisture before the next process.

Product Overview

This four-tank system is designed for applications where one cleaning stage followed by a single rinse is not sufficient.

The standard configuration uses three ultrasonic treatment stages, allowing the process to be arranged around primary ultrasonic cleaning followed by two successive ultrasonic-assisted rinsing stages. A dedicated drying stage completes the process.

Compared with the three-tank cleaning–rinsing–drying series, the additional rinse stage provides another separation step between the contaminated cleaning bath and the final drying process.

Best suited for: industrial components requiring ultrasonic cleaning followed by two controlled rinsing stages and drying.

Consider another system if: the process requires spray rinsing instead of a second immersion rinse, fewer treatment stages, or additional automated handling.

Four-Stage Cleaning Process

A typical process can be configured as:

Ultrasonic Cleaning → Ultrasonic Rinsing → Ultrasonic Final Rinsing → Drying

Stage 1 — Ultrasonic Cleaning

The first ultrasonic stage performs the primary contamination-removal process.

Ultrasonic cavitation, cleaning chemistry, temperature, and process time work together to remove machining oil, grease, coolant, particles, polishing residue, and other process contamination.

Stage 2 — First Ultrasonic Rinsing

The first rinse stage helps remove cleaning solution and loosened contamination carried over from the main cleaning bath.

Ultrasonic action supports liquid contact with complex surfaces, recesses, and other difficult-to-reach areas.

Stage 3 — Second Ultrasonic Rinsing

A second rinse stage provides further separation from the primary cleaning bath and first rinse.

This stage is useful where the process requires more controlled removal of residual cleaning solution before drying.

Stage 4 — Drying

After the final rinse, parts move to the dedicated drying stage.

Standard drying temperature can be controlled from ambient temperature up to 150°C.

Typical Applications

Parts / Applications	Typical Contamination	Why Dual Rinsing Helps
Precision machined parts	Cutting oil, coolant, fine particles	Provides two rinse stages after primary cleaning
Automotive components	Oil, grease and process residue	Reduces carryover between cleaning and final drying
Gears & transmission parts	Lubricants and particles	Ultrasonic treatment supports complex geometries
Valves & fittings	Oil and machining residue	Ultrasonic rinsing reaches recesses and detailed surfaces
Parts before coating	Oil and cleaning-solution residue	Additional rinsing supports preparation for downstream treatment
Precision metal components	Fine particles and process residue	Provides a more controlled cleaning-to-drying sequence

Core Features

Three Ultrasonic Treatment Stages

Unlike the standard three-tank configuration, this system provides three ultrasonic stages for primary cleaning and two successive rinsing treatments.

Depending on model, the system uses 12 pcs × 3 to 216 pcs × 3 ultrasonic transducers.

Dual Rinsing Process

Two separate rinse stages provide progressive removal of cleaning solution and residual contamination before drying.

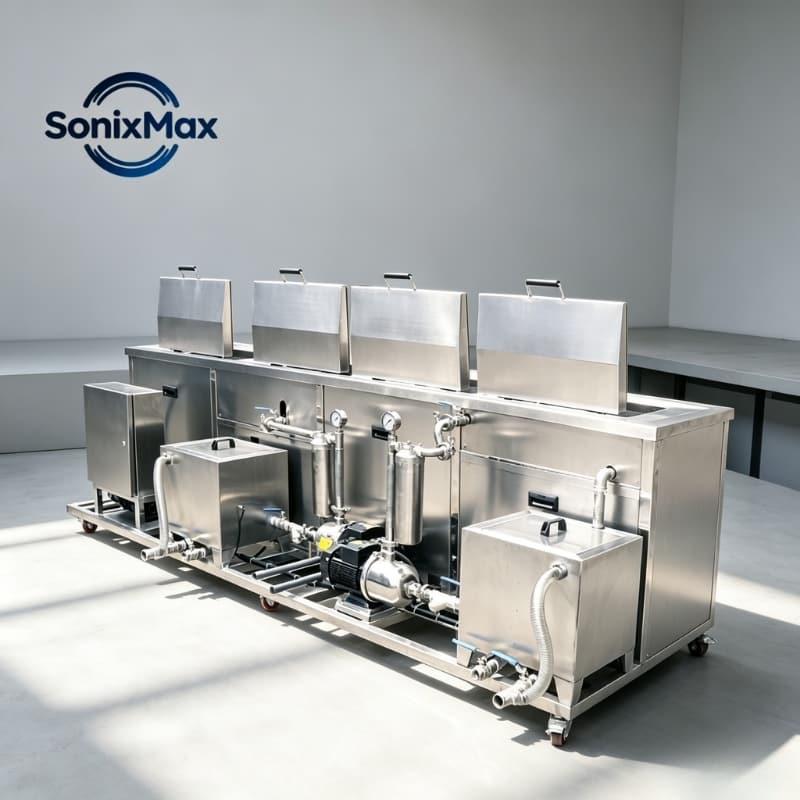

Filtration & Circulation

Standard filtration circulation supports cleaning-liquid management during repeated industrial batch processing.

Adjustable Ultrasonic Power

Depending on model, ultrasonic output ranges from 0–600W × 3 to 0–10800W × 3.

28/40kHz Frequency Options

Standard systems support 28kHz or 40kHz ultrasonic configurations according to workpiece geometry, contamination, and process requirements.

Heated Cleaning & Rinsing

Cleaning and rinsing temperature can be controlled from ambient temperature to 95°C.

Dedicated Drying

The final drying stage supports temperature control from ambient temperature to 150°C.

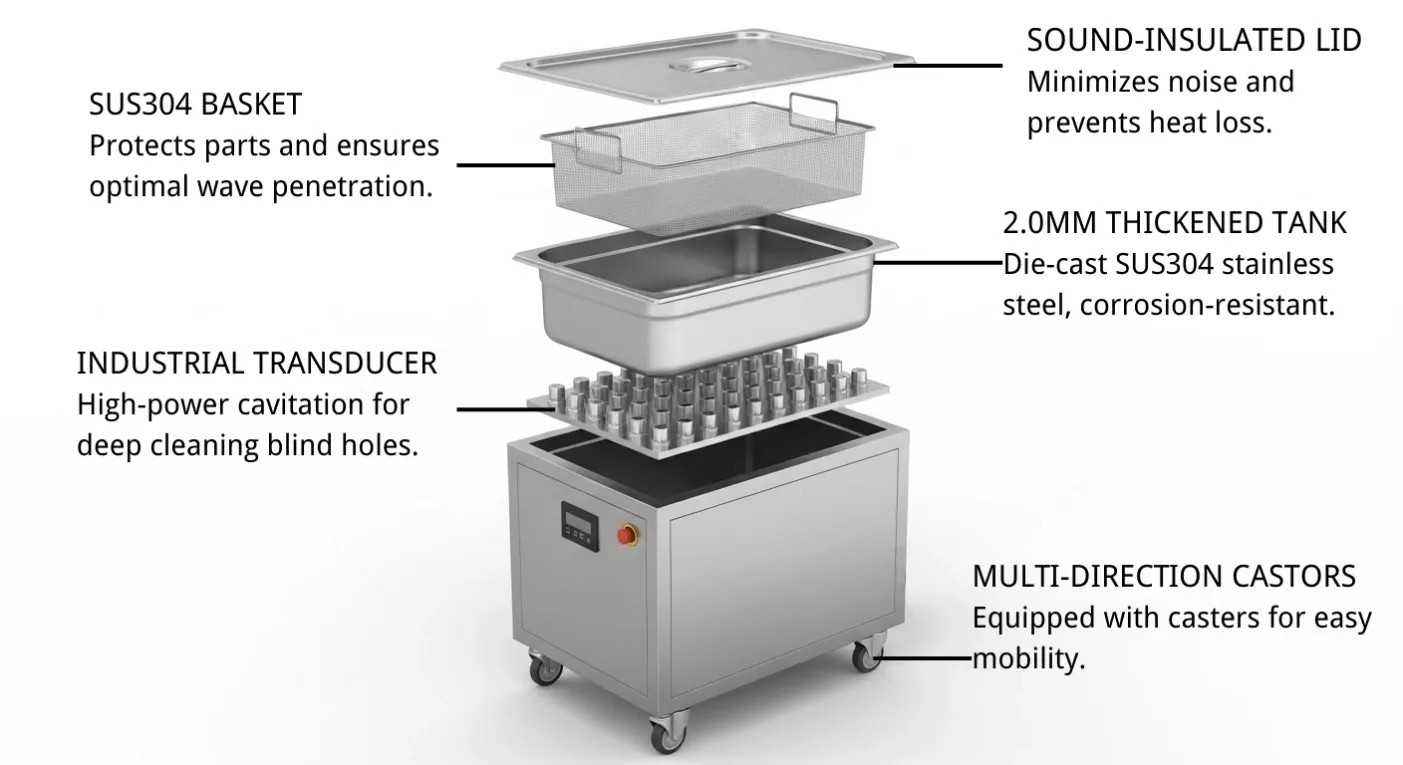

SUS304 Construction

Standard inner tanks use SUS304 stainless steel with T2.0 construction for industrial batch-cleaning applications.

Technical Specifications

Model	Inner Tank Size (mm)	Capacity	Material	Transducers	Adjustable Ultrasonic Power	Frequency	Timer	Cleaning/Rinsing Heating Power	Cleaning/Rinsing Temp.	Drying Temp.	Filtration
SNXM-4036FRD	500 × 300 × 300	45L	SUS304	12 pcs × 3	0–600W × 3	28/40kHz	1–99 min	1.5kW	Ambient–95°C	Ambient–150°C	Standard
SNXM-4054FRD	500 × 350 × 350	61L	SUS304	18 pcs × 3	0–900W × 3	28/40kHz	1–99 min	1.5kW	Ambient–95°C	Ambient–150°C	Standard
SNXM-4072FRD	550 × 400 × 400	88L	SUS304	24 pcs × 3	0–1200W × 3	28/40kHz	1–99 min	3kW	Ambient–95°C	Ambient–150°C	Standard
SNXM-4090FRD	600 × 450 × 400	108L	SUS304	30 pcs × 3	0–1500W × 3	28/40kHz	1–99 min	3kW	Ambient–95°C	Ambient–150°C	Standard
SNXM-40108FRD	600 × 500 × 450	135L	SUS304	36 pcs × 3	0–1800W × 3	28/40kHz	1–99 min	4.5kW	Ambient–95°C	Ambient–150°C	Standard
SNXM-40144FRD	700 × 500 × 500	193L	SUS304	48 pcs × 3	0–2400W × 3	28/40kHz	1–99 min	6kW	Ambient–95°C	Ambient–150°C	Standard
SNXM-40180FRD	800 × 600 × 550	288L	SUS304	60 pcs × 3	0–3000W × 3	28/40kHz	1–99 min	6kW	Ambient–95°C	Ambient–150°C	Standard
SNXM-40216FRD	1000 × 600 × 600	360L	SUS304	72 pcs × 3	0–3600W × 3	28/40kHz	1–99 min	9kW	Ambient–95°C	Ambient–150°C	Standard
SNXM-40252FRD	1200 × 700 × 500	420L	SUS304	84 pcs × 3	0–4200W × 3	28/40kHz	1–99 min	12kW	Ambient–95°C	Ambient–150°C	Standard
SNXM-40270FRD	1200 × 800 × 500	480L	SUS304	90 pcs × 3	0–4500W × 3	28/40kHz	1–99 min	12kW	Ambient–95°C	Ambient–150°C	Standard
SNXM-40288FRD	1200 × 800 × 600	560L	SUS304	96 pcs × 3	0–4800W × 3	28/40kHz	1–99 min	18kW	Ambient–95°C	Ambient–150°C	Standard
SNXM-40324FRD	1000 × 900 × 600	540L	SUS304	108 pcs × 3	0–5400W × 3	28/40kHz	1–99 min	18kW	Ambient–95°C	Ambient–150°C	Standard
SNXM-40360FRD	1000 × 800 × 800	640L	SUS304	120 pcs × 3	0–6000W × 3	28/40kHz	1–99 min	24kW	Ambient–95°C	Ambient–150°C	Standard
SNXM-40396FRD	1000 × 1000 × 800	800L	SUS304	132 pcs × 3	0–6600W × 3	28/40kHz	1–99 min	24kW	Ambient–95°C	Ambient–150°C	Standard
SNXM-40432FRD	1200 × 1000 × 800	960L	SUS304	144 pcs × 3	0–7200W × 3	28/40kHz	1–99 min	24kW	Ambient–95°C	Ambient–150°C	Standard
SNXM-40648FRD	1500 × 1000 × 1000	1500L	SUS304	216 pcs × 3	0–10800W × 3	28/40kHz	1–99 min	36kW	Ambient–95°C	Ambient–150°C	Standard

Specifications are standard reference configurations. Final cleaning and rinsing process, filtration, tank dimensions, baskets, drying system, electrical configuration, and handling method can be customized according to the application.

How to Select the Right Configuration

For this system, the key question is not simply how many tanks are required, but how many treatment and rinsing stages the parts need before drying.

Selection should consider the part size, batch weight, contamination, cleaning chemistry, required cleanliness, rinse-water requirements, drying requirements, and downstream process.

For applications where one rinse is sufficient, the three-tank system may be a simpler choice. Where additional rinsing is required before drying, this four-stage configuration provides a more suitable process platform.

Custom Engineering Options

Customization Area	Available Configuration
Tank & Basket	Custom dimensions, baskets and fixtures
Ultrasonic System	28/40kHz and application-specific configuration
Liquid Management	Filtration, circulation and additional rinsing
Cleaning Assistance	Spray and bubbling where required
Part Movement	Agitation / reciprocating movement
Material Handling	Lifting and customized transfer
Rotating Parts	Drum / rolling cleaning
Drying	Heated-air drying and air knife
Cooling	Cooling configuration where required
Process Control	PLC and HMI
Automation	Gantry transfer and automatic handling
Electrical	Destination-specific configuration

Which System Fits Your Process?

Process Requirement	Recommended Direction
Cleaning only	Single-Tank System
Cleaning + rinsing	Dual-Tank System
Cleaning + rinsing + drying	Triple-Tank System
Cleaning + dual rinsing + drying	This 4-Tank System
Cleaning + rinsing + spray + drying	4-Tank Spray System
Additional treatment stages	Custom Multi-Tank System
Automatic basket transfer	Automated Ultrasonic Cleaning System

Why Work with SonixMax?

The number of tanks should be determined by the required cleaning process rather than selected as a standalone specification.

SonixMax evaluates the workpiece, contamination, batch load, cleaning chemistry, rinsing requirements, drying requirements, and downstream process to determine a suitable system configuration.

Additional filtration, agitation, lifting, spraying, bubbling, air-knife drying, PLC control, and automatic transfer can be integrated where required.

FAQ

Why use two rinsing stages?

Two separate rinsing stages provide progressive removal of cleaning solution and contamination carried over from the primary cleaning bath before parts enter the drying stage.

Are all three wet-process tanks ultrasonic?

According to the standard specification, the system uses three ultrasonic configurations, with transducer quantity and ultrasonic power specified as ×3.

How is this different from the three-tank system?

The three-tank system is primarily configured around cleaning → rinsing → drying. This four-tank version adds another rinsing stage, creating cleaning → rinsing → final rinsing → drying.

How is this different from the four-tank spray system?

This version uses a second immersion/ultrasonic rinsing stage instead of the dedicated spray stage used in the other four-tank configuration.

Can the system be automated?

Yes. Lifting, PLC control, gantry transfer, and other handling configurations can be evaluated according to batch weight and production requirements.

Request a Cleaning Solution

Send us your part dimensions, material, contamination, batch quantity or weight, required cleanliness, current cleaning process, and downstream requirements.

SonixMax can help evaluate the appropriate tank size, ultrasonic configuration, filtration, rinsing stages, drying, and material-handling requirements.

Contact SonixMax to Discuss Your Application
