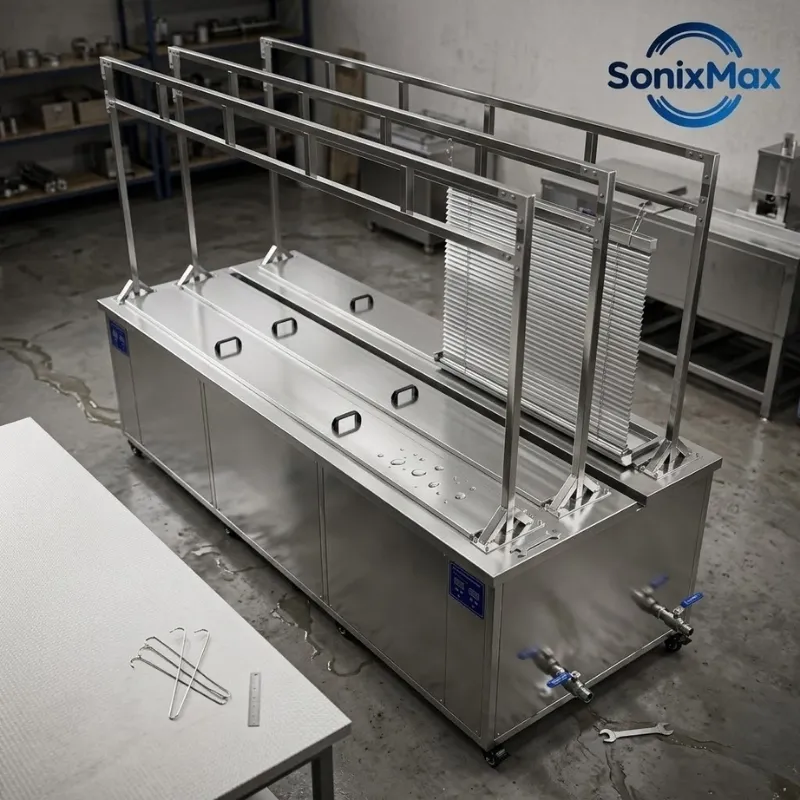

3 Meter Length Ultrasonic Cleaning Machine for Venetian Blinds and Curtains
3 meter length ultrasonic cleaning machine designed for cleaning venetian blinds, curtain tracks, and long industrial components. Features 330L capacity, adjustable ultrasonic power, heating control, dual-frequency operation, and customized hanging frames for industrial cleaning applications.
Designed for manufacturers requiring efficient cleaning of long-size window covering components, this industrial ultrasonic cleaning machine features a 330L cleaning capacity, adjustable ultrasonic power up to 3600W, 28kHz/40kHz dual-frequency operation, and a customized hanging frame for blinds and curtain cleaning applications.
- Cleaning Length: 3000mm
- Tank Capacity: 330L
- Ultrasonic Power: 0-3600W Adjustable
- Frequency: 28kHz / 40kHz
- Heating Temperature: Up to 85℃
- Material: SUS304 / SUS316
Target Customer
- Venetian blinds manufacturers
- Curtain manufacturers
- Window covering component suppliers
- Industrial cleaning service providers
Product Overview
The 3 Meter Length Ultrasonic Cleaning Machine is designed for industrial cleaning applications involving long and narrow components such as venetian blinds, curtain tracks, and window covering parts.
Traditional cleaning methods can be challenging for long components due to their size, surface structure, and production volume. This ultrasonic cleaning system provides an extended cleaning area with a customized hanging frame, helping manufacturers handle long workpieces efficiently during batch cleaning processes.
With a 330L cleaning capacity, adjustable ultrasonic power, temperature control, and stainless steel construction options, the system can be customized according to different production requirements.
Industrial Cleaning Challenges
Difficult Cleaning of Long Components
Long-size components often require special cleaning space and handling methods. Standard ultrasonic cleaners may not provide sufficient working dimensions for these applications.
Surface Contamination Affects Product Appearance
Dust, grease, processing residues, and handling marks can affect the appearance and quality of finished blinds and curtain components.
Manual Cleaning Creates Inconsistent Results
Manual cleaning processes depend on operator experience and may create differences between production batches.
Complex Structures Require Better Cleaning Access
Profiles, grooves, and detailed surfaces can be difficult to clean effectively using traditional methods.
How Ultrasonic Cleaning Helps
Ultrasonic cleaning uses cavitation generated in the cleaning liquid to help remove contaminants from component surfaces.
Consistent Cleaning Process
Ultrasonic energy helps clean different surface areas during the cleaning cycle and supports repeatable industrial cleaning processes.
Suitable for Complex Components
The cleaning process can support components with profiles, grooves, and detailed structures.
Improved Handling Efficiency
The customized hanging frame helps position long components during loading and cleaning.
Applications

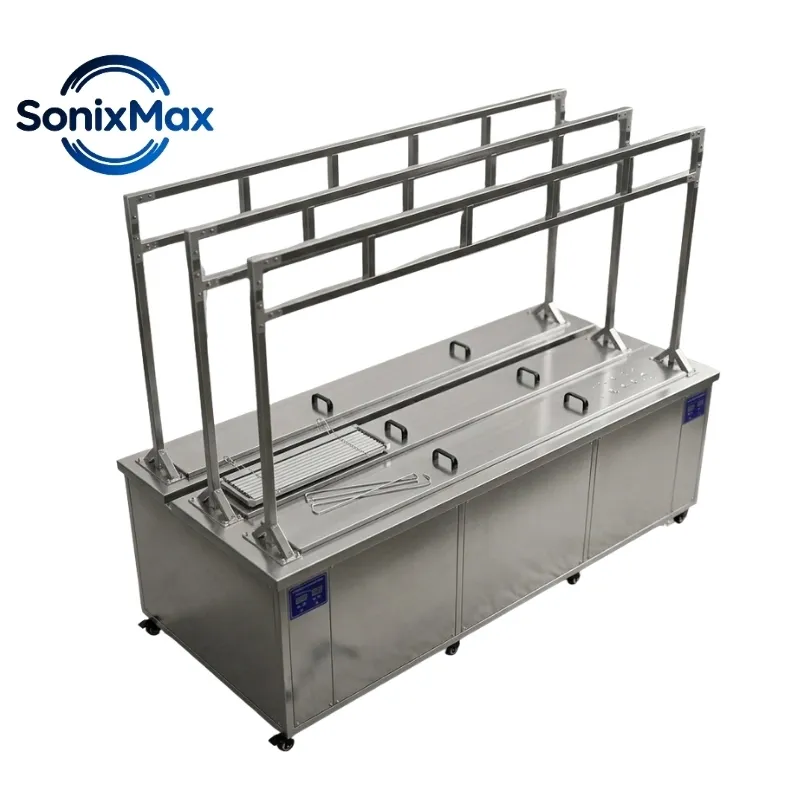

Venetian Blinds Manufacturing
Suitable for cleaning:
- Aluminum blind components
- Blind profiles
- Window covering accessories
Typical contaminants:
- Dust
- Oil contamination
- Processing residues
Curtain Component Production
Suitable for:
- Curtain tracks
- Long metal components
- Curtain accessories
Supports:
- Pre-assembly cleaning
- Appearance preparation
- Batch cleaning processes
Long Industrial Components
The extended cleaning design can also be customized for other long components requiring special cleaning dimensions.
Core Features
3 Meter Cleaning Length Design
The system is designed with extended tank dimensions:
3000mm × 220mm × 500mm × 2
The long cleaning space allows manufacturers to process components that cannot fit standard ultrasonic cleaning tanks.
Adjustable Ultrasonic Power
The ultrasonic power can be adjusted from:
0-3600W
Adjustable power settings allow users to configure cleaning intensity according to different application requirements.
Dual Frequency Configuration
Available frequency:
28kHz / 40kHz
Different frequency options allow users to select suitable cleaning configurations according to component requirements.

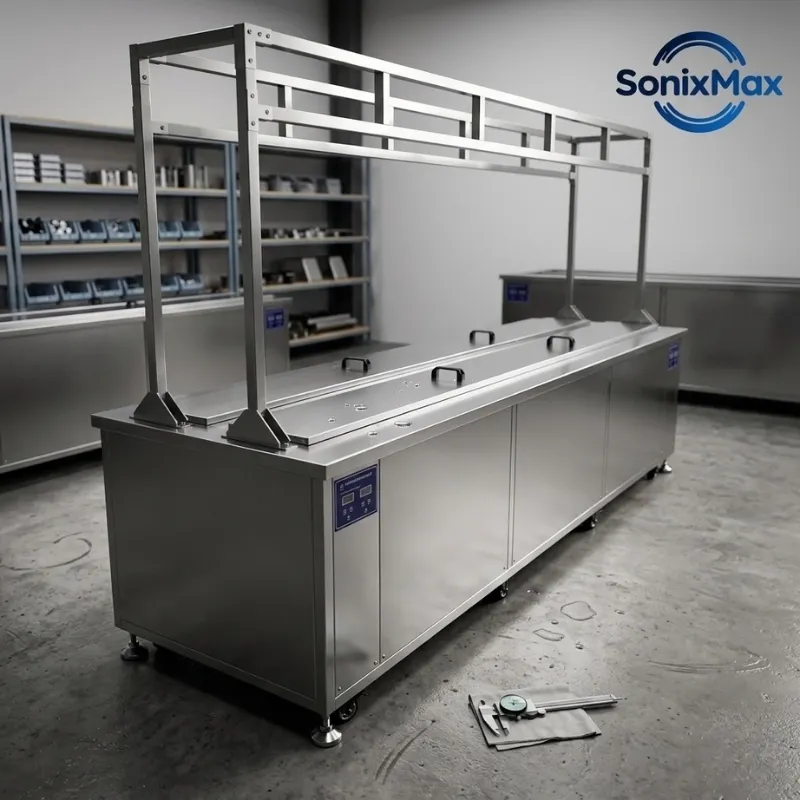

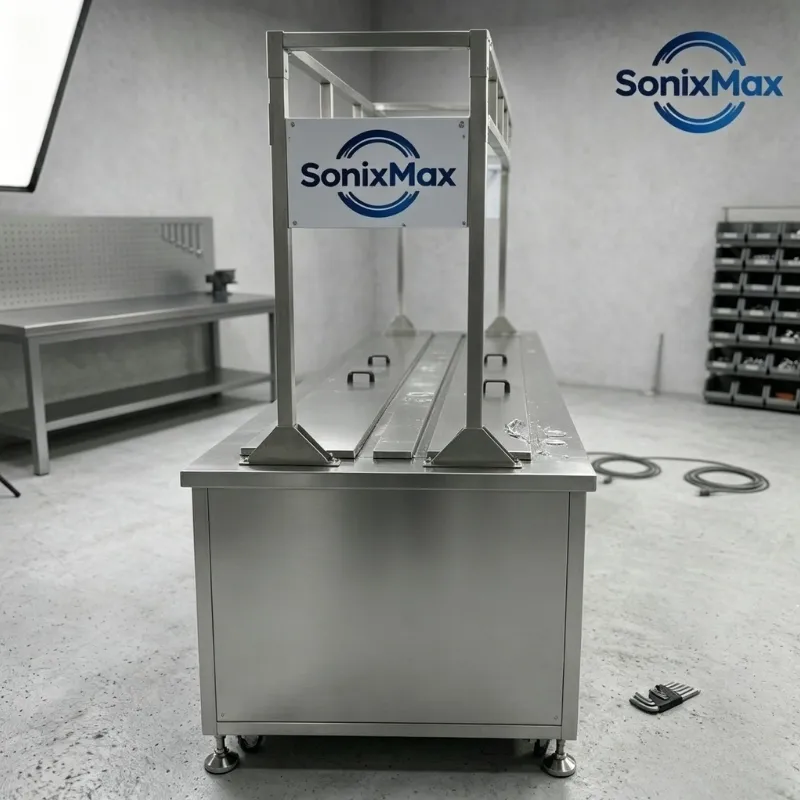

Customized Hanging Frame
The machine includes a frame design for blinds hanging.
Benefits include:
- Easier loading of long components
- Better positioning during cleaning
- Customized handling according to workpiece dimensions
Temperature Control System
Heating temperature range:
Normal Temperature - 85℃
Adjustable temperature control supports different industrial cleaning processes.
Stainless Steel Construction
Available materials:
- SUS304
- SUS316
Suitable for industrial cleaning environments requiring durable tank construction.
Technical Specifications
Item | Specification |
|---|---|
Model | SNXM-214SP-L |
Cleaning Capacity | 330L |
Inner Tank Dimensions | 3000mm × 220mm × 500mm × 2 |
Ultrasonic Power | 0-3600W Adjustable |
Frequency | 28kHz / 40kHz |
Time Control | 1-99 minutes |
Temperature Control | Normal Temperature - 85℃ |
Heating Power | 6000W Adjustable |
Transducer | 72pcs for each tank |
Power Supply | Three Phase 380V |
Material | SUS304 / SUS316 |
Function | Frame for blinds hanging |
Customization | Available |
Optional Configurations
Cleaning System Options
Available options include:
- Customized tank dimensions
- Different ultrasonic power configurations
- Frequency selection according to application requirements
Handling Options
Possible customization:
- Hanging frames
- Loading fixtures
- Workpiece positioning solutions
Material Options
Available stainless steel options:
- SUS304
- SUS316
Why Work With SonixMax
Application-Oriented Equipment Selection
SonixMax helps customers select suitable ultrasonic cleaning equipment based on:
- Workpiece dimensions
- Material characteristics
- Contamination type
- Production requirements
Customized Industrial Solutions
For special-length components, SonixMax can support:
- Tank dimension customization
- Fixture and hanging frame coordination
- Cleaning configuration selection
Technical Communication & Project Support
From initial requirements to equipment delivery, SonixMax supports technical communication and project coordination to help customers implement suitable cleaning solutions.
FAQ
Can this ultrasonic cleaner clean long blinds and curtain components?
Yes. This system is designed with a 3-meter cleaning length and customized hanging frame for long components such as blinds and curtain parts.
What materials are available for this ultrasonic cleaner?
The system can be configured with SUS304 or SUS316 stainless steel materials.
Get the Right Ultrasonic Cleaning Solution
For long-size components or special industrial cleaning applications, provide:
- Part dimensions
- Material
- Contamination type
- Production quantity
- Current cleaning process
- Required cleaning requirements
SonixMax will help recommend a suitable ultrasonic cleaning configuration.
