Single tank series

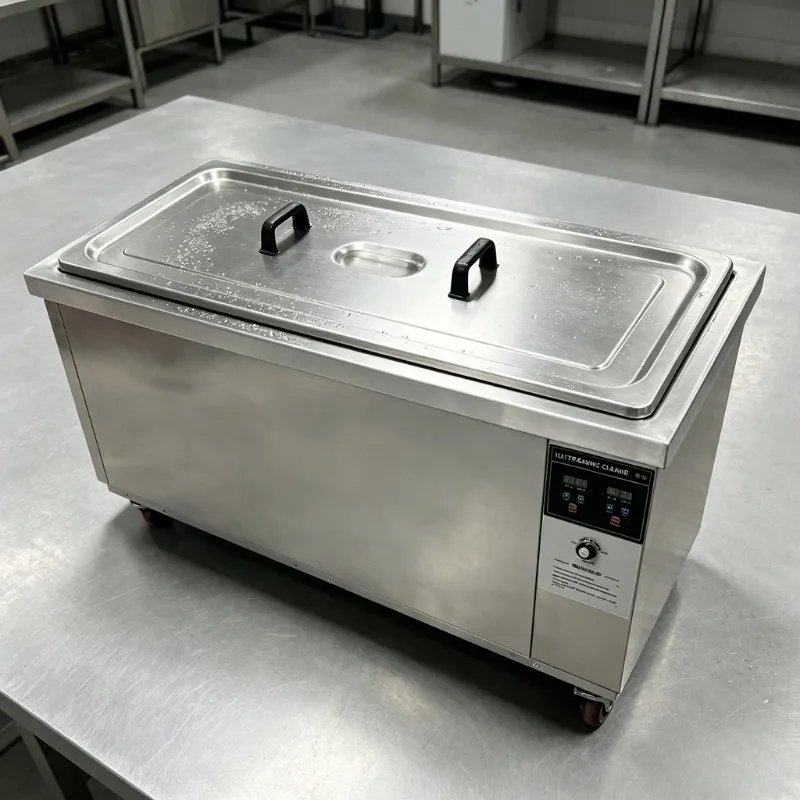

96L Industrial Rectangular Single-Tank Ultrasonic Cleaner
96L industrial rectangular single-tank ultrasonic cleaner with an 800 × 300 × 400 mm tank, 0–1500W adjustable ultrasonic power, 28/40kHz frequency options, and 3000W heating. Designed for long and irregular industrial parts, with SUS304/SUS316 tank material and customizable configurations available.
Product Overview
Not every industrial component fits efficiently into a standard ultrasonic cleaning tank.
The SNXS-130SP-L uses a long rectangular 96L tank to provide additional horizontal cleaning space while maintaining the simplicity of a single-tank ultrasonic cleaning system.
It is suitable for removing common industrial contaminants such as:
- Cutting oil and machining coolant
- Grease and lubricants
- Metal particles and chips
- Polishing residue
- Carbon deposits
- General production contamination
The system combines ultrasonic cleaning and heating in one tank and can be further configured according to the customer's parts, cleaning chemistry, and production requirements.

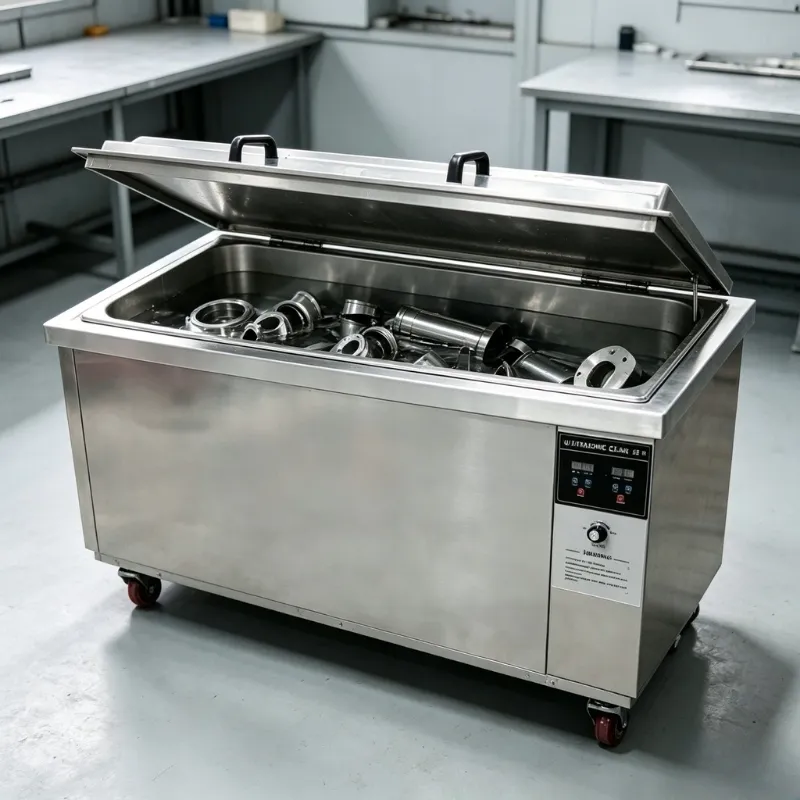

Designed for Long and Rectangular Workpieces
The main difference between this model and a conventional single-tank ultrasonic cleaner is its 800 mm tank length.
This rectangular configuration is particularly useful when the workpiece requires more horizontal space but does not require a large-volume multi-tank cleaning system.
Typical workpieces may include:
- Long machined components
- Metal bars and profiles
- Shafts and mechanical components
- Industrial tools
- Mold and die components
- Automotive parts
- Hardware assemblies
- Custom-shaped metal components
Actual suitability depends on the workpiece dimensions, weight, material, contamination, and required cleaning process.
Core Features
96L Rectangular Cleaning Tank
The 800 × 300 × 400 mm inner tank provides a long cleaning area for components that may not fit efficiently into conventional tank proportions.
Adjustable Ultrasonic Power
Ultrasonic power is adjustable from 0–1500W, allowing the cleaning intensity to be adapted to different parts and contamination conditions.
28kHz / 40kHz Frequency Options
The system supports 28kHz or 40kHz ultrasonic configurations.
- 28kHz – commonly selected for heavier industrial contamination and robust components.
- 40kHz – commonly selected for general-purpose cleaning and parts requiring finer cavitation.
Frequency selection should be based on the actual workpiece and cleaning requirement.
Integrated Heating
The 3000W adjustable heating system supports cleaning temperatures from ambient temperature up to 85°C, helping improve the effectiveness of suitable cleaning solutions.
SUS304 / SUS316 Tank Options
The cleaning tank can be manufactured in SUS304 or SUS316 stainless steel depending on the cleaning chemistry and operating environment.
Customizable Industrial Configuration
Tank dimensions, ultrasonic configuration, material, electrical specifications, baskets, filtration, and other functions can be adapted for project requirements.
Technical Specifications
Parameter | Specification |
|---|---|
Model | SNXS-130SP-L |
Capacity | 96L |
Inner Tank Dimensions | 800 × 300 × 400 mm |
Ultrasonic Power | 0–1500W Adjustable |
Ultrasonic Frequency | 28kHz / 40kHz |
Transducers | 30 pcs |
Heating Power | 3000W Adjustable |
Temperature Control | Ambient Temperature – 85°C |
Time Control | 1–99 min |
Tank Material | SUS304 / SUS316 |
Power Supply | Single-Phase 220V |
Customization | Available |
Specifications can be adjusted according to project requirements.
Typical Applications
Precision Machining
Suitable for removing cutting oil, coolant, chips, and machining residue from metal components.
Automotive & Mechanical Parts
Can be configured for shafts, fittings, mechanical assemblies, and other elongated components requiring immersion cleaning.
Mold, Die & Tool Cleaning
Ultrasonic cavitation helps reach grooves, recesses, and other areas that are difficult to clean manually.
Hardware & Metal Components
Suitable for batch cleaning of industrial hardware and fabricated metal parts before inspection, assembly, coating, or subsequent processing.
Customization Options
This model can be adapted according to the workpiece and cleaning process.
Available project configurations may include:
- Custom tank dimensions
- SUS304 or SUS316 tank material
- Ultrasonic frequency selection
- Ultrasonic power configuration
- Bottom or side ultrasonic arrangement
- Filtration and circulation system
- Agitation system
- Automatic lifting
- Cleaning baskets and fixtures
- Drainage configuration
- PLC control
- Custom voltage and electrical standards
For larger or more complex cleaning processes, the system can also be developed into a multi-tank or automated ultrasonic cleaning solution.
How to Select the Right Configuration
Before selecting an industrial ultrasonic cleaner, the tank size and ultrasonic configuration should be matched to the actual workpiece rather than capacity alone.
Important information includes:
- Part dimensions and weight
- Part material
- Type of contamination
- Cleaning quantity per batch
- Required cleanliness
- Cleaning chemistry
- Current cleaning process
- Required production capacity
For long or irregular components, providing a part drawing or photo with dimensions helps determine whether this 800 mm rectangular tank or a customized tank size is more suitable.
FAQ
What is the main advantage of the rectangular tank?
The 800 mm tank length provides more horizontal cleaning space for elongated components while keeping the system in a relatively simple single-tank configuration.
Can a filtration system be added?
Yes. Filtration and circulation can be configured when the cleaning process requires removal of suspended contamination or reuse of the cleaning solution.
Can SUS316 be used instead of SUS304?
Yes. SUS304 and SUS316 are available. Material selection should be based on the cleaning chemistry and operating environment.
Request a Cleaning Solution
To determine whether this 96L rectangular ultrasonic cleaner is suitable for your application, please provide:
- Part photos or drawings
- Part dimensions and weight
- Material
- Contamination type
- Quantity per batch
- Required cleanliness
- Cleaning solution, if already selected
- Voltage and destination country
