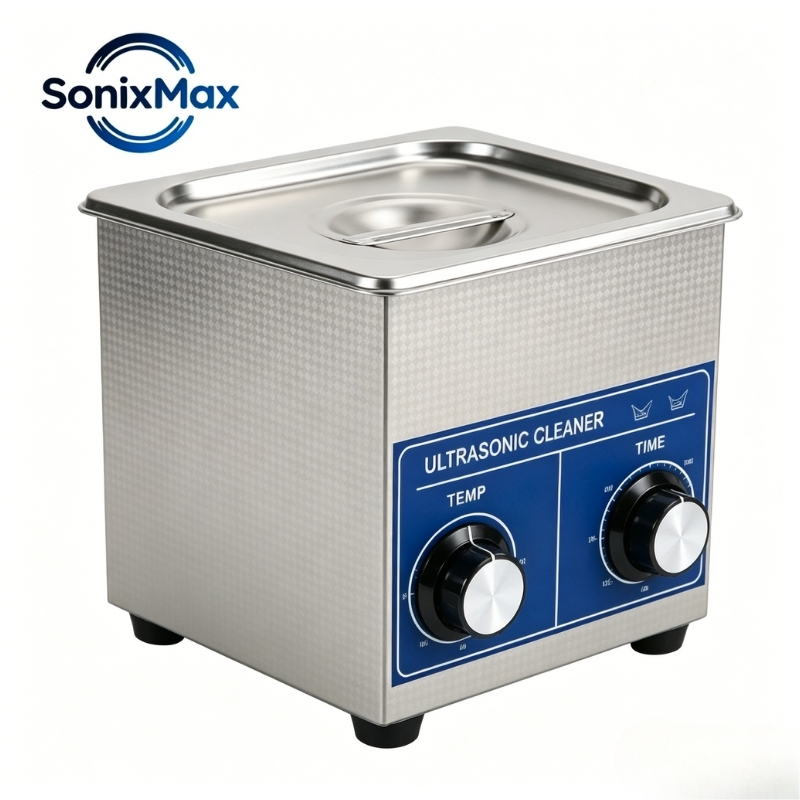

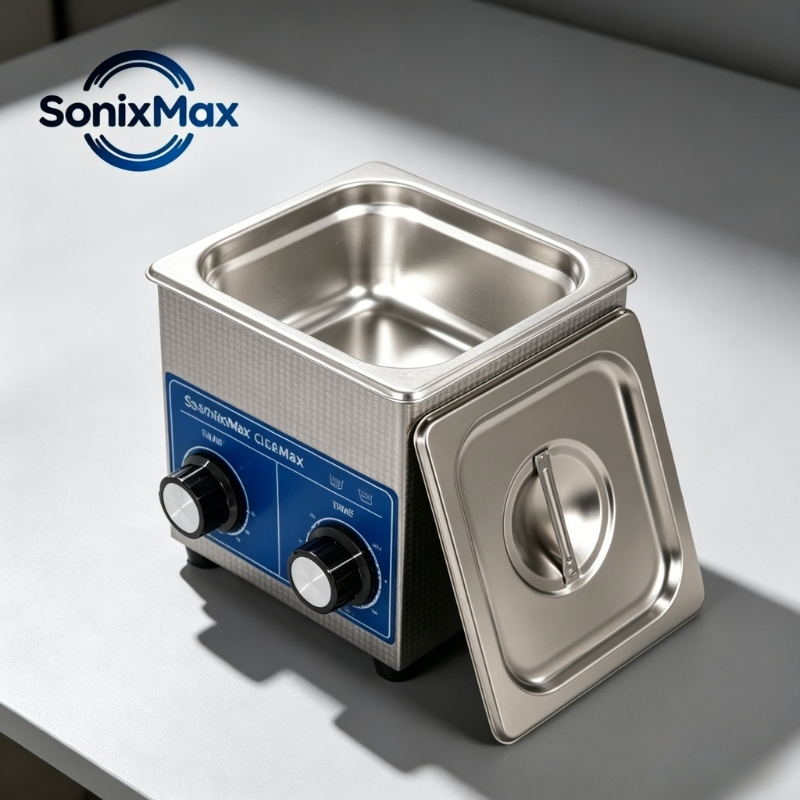

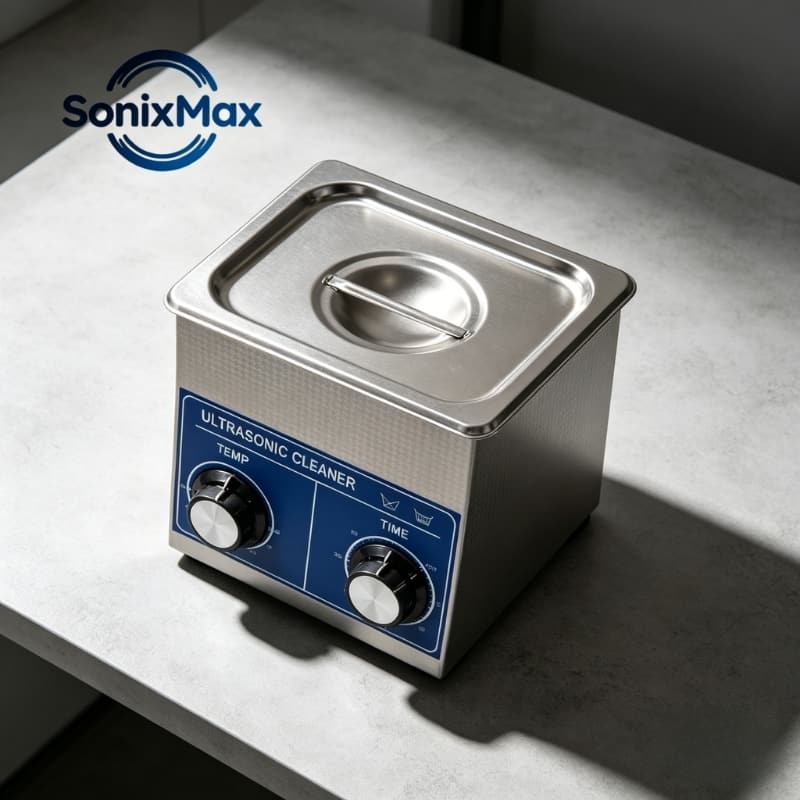

Mechanical Benchtop Ultrasonic Cleaners
Tabletop ultrasonic cleaner, mechanical knob, multiple capacities from 1.3L to 30L
The Mechanical Series is a heavy-duty, industrial-grade ultrasonic cleaner engineered for high-intensity environments where reliability is the top priority. Featuring a classic dual-knob analog interface, this series eliminates the complexity of digital menus, providing a tactile and intuitive user experience that excels in demanding workshop or laboratory settings.
Product Overview
The Mechanical Series Benchtop Ultrasonic Cleaners are designed for distributors, wholesalers, laboratories, repair workshops, and professional service providers seeking a reliable and cost-effective ultrasonic cleaning solution.
This series covers capacities from 1.3L to 30L, featuring mechanical timer control, mechanical thermostat, 40kHz ultrasonic frequency, and SUS304 stainless steel tanks for stable daily operation.
Compared with digital models, the mechanical series offers straightforward operation, fewer electronic components, and dependable performance, making it suitable for customers who prioritize durability, ease of maintenance, and competitive pricing.
Typical applications include jewelry, watches, optical lenses, laboratory glassware, dental instruments, electronic components, carburetors, metal parts, and precision tools.
Key Features
Mechanical Timer Control
Simple rotary timer control from 0–30 minutes allows quick operation without digital programming, making the equipment easy to use for daily commercial cleaning.
Mechanical Temperature Control
Heating temperature is adjustable from 20°C to 80°C, helping improve the removal of oil, grease, wax, polishing compounds, and other common contaminants.
SUS304 Stainless Steel Tank
The cleaning tank is manufactured from SUS304 stainless steel, providing corrosion resistance, durability, and easy maintenance for long-term commercial use.
Stable 40kHz Ultrasonic Frequency
The standard 40kHz ultrasonic frequency generates uniform cavitation, making it suitable for cleaning precision components without excessive surface impact.
Multiple Capacity Options
Available from 1.3L to 30L, allowing users to select an appropriate tank size according to workpiece dimensions and daily cleaning volume.
Cleaning Performance
Ultrasonic cavitation produces millions of microscopic bubbles that penetrate small gaps, blind holes, grooves, and intricate surfaces where manual cleaning is often difficult.
The Mechanical Series is suitable for removing:
- Oil
- Grease
- Wax
- Dust
- Carbon deposits
- Polishing compounds
- Light oxidation
- Fine particles
Cleaning performance depends on contamination type, cleaning solution, temperature, and operating conditions.
Typical Applications
Jewelry & Watches
Suitable for cleaning:
- Rings
- Necklaces
- Bracelets
- Watches
- Watch bands
Optical Industry
Suitable for:
- Glasses
- Optical lenses
- Camera filters
- Precision optical components
Dental & Medical
Suitable for:
- Dental mirrors
- Forceps
- Stainless instruments
- Laboratory tools
Laboratory
Suitable for:
- Glassware
- Beakers
- Test tubes
- Laboratory instruments
Electronics
Suitable for:
- PCB assemblies
- Electronic components
- Connectors
- Precision hardware
Automotive
Suitable for:
- Carburetors
- Fuel injectors
- Bearings
- Engine components
- Small mechanical parts
Why Choose the Mechanical Series?
The Mechanical Series is ideal for users seeking a dependable ultrasonic cleaner with simple operation and low maintenance requirements.
Compared with digital models, mechanical controls provide:
- Easy operation
- Stable daily performance
- Lower maintenance requirements
- Competitive purchase cost
- Suitable for continuous commercial use
This makes the series a practical choice for distributors, wholesalers, workshops, laboratories, and professional cleaning businesses.
Technical Specifications
Product Model | Tank Size (mm) | Capacity | Tank Material | Ultrasonic Power | Frequency | Timer | Heating | Temperature |
|---|---|---|---|---|---|---|---|---|
SNX-MB-1.3L | 150×140×65 | 1.3L | SUS304 | 60W | 40kHz | 0–30 min | 100W | 20–80°C |
SNX-MB-2L | 150×140×100 | 2L | SUS304 | 60W | 40kHz | 0–30 min | 100W | 20–80°C |
SNX-MB-3L | 240×135×100 | 3L | SUS304 | 120W | 40kHz | 0–30 min | 100W | 20–80°C |
SNX-MB-6L | 300×150×150 | 6L | SUS304 | 180W | 40kHz | 0–30 min | 300W | 20–80°C |
SNX-MB-10L | 300×240×150 | 10L | SUS304 | 240W | 40kHz | 0–30 min | 300W | 20–80°C |
SNX-MB-14L | 300×240×200 | 14L | SUS304 | 300W | 40kHz | 0–30 min | 300W | 20–80°C |
SNX-MB-15L | 330×300×150 | 15L | SUS304 | 360W | 40kHz | 0–30 min | 300W | 20–80°C |
SNX-MB-19L | 330×300×200 | 19L | SUS304 | 420W | 40kHz | 0–30 min | 300W | 20–80°C |
SNX-MB-22L | 500×300×150 | 22L | SUS304 | 480W | 40kHz | 0–30 min | 600W | 20–80°C |
SNX-MB-30L | 500×300×200 | 30L | SUS304 | 600W | 40kHz | 0–30 min | 600W | 20–80°C |
How to Choose the Right Mechanical Ultrasonic Cleaner
Capacity Selection
Choose a tank that provides adequate clearance around the workpiece for effective ultrasonic circulation.
General recommendations:
- 1.3L–3L: Jewelry, watches, small tools
- 6L–10L: Laboratory instruments, dental equipment, electronics
- 14L–19L: Automotive components, hardware, repair workshops
- 22L–30L: Larger parts and higher daily cleaning volume
Selection Factors
Requirement | Recommendation |
|---|---|
Workpiece Size | Select a basket with sufficient clearance around the parts |
Contamination | Oil, grease, polishing compounds, dust, light carbon deposits |
Daily Volume | Choose tank capacity according to cleaning throughput |
Heating | Recommended for oil and grease removal |
Workspace | Verify installation space before selecting larger capacities |
Usage Tips & Maintenance
Temperature Setting
When using ultrasonic cleaning together with heating, set the target temperature slightly below the desired cleaning temperature, as ultrasonic operation naturally increases the solution temperature during cleaning.
Cleaning Time Guide
- Light contamination: 3–8 minutes
- Medium contamination: Approximately 10–15 minutes
- Heavy contamination: Approximately 20–30 minutes
Cleaning time varies depending on contamination type, cleaning solution, and part geometry.
Tank Size Advice
For optimal ultrasonic circulation, leave approximately 50 mm (2 inches) of clearance between the cleaning basket and the tank walls whenever possible.
Daily Maintenance
- Replace cleaning solution regularly.
- Rinse and dry the tank after use.
- Avoid operating the machine without sufficient liquid.
- Keep the control panel clean and dry.
Commercial Cooperation
SonixMax supports commercial buyers with:
- Wholesale orders
- Distributor cooperation
- OEM & Private Label services
- Product documentation
- Export packaging
- Spare parts support
- Model selection guidance
Mixed model orders can be arranged according to project and market requirements.
Frequently Asked Questions
What is the difference between mechanical and digital ultrasonic cleaners?
Mechanical models use rotary controls for timer and temperature adjustment, offering simple operation and reliable performance. Digital models provide more precise electronic control.
Can this machine clean jewelry?
Yes. The 40kHz frequency is suitable for many types of jewelry when appropriate cleaning solutions are used.
Is heating available?
Yes. Most models include adjustable heating from 20°C to 80°C.
Can aluminum parts be cleaned?
Yes. Cleaning results depend on the material, contamination, cleaning solution, and operating conditions.
Do you provide OEM service?
Yes. OEM and private label cooperation are available for qualified commercial customers.
Which industries commonly use this series?
Typical users include laboratories, dental clinics, repair workshops, jewelry stores, electronics manufacturers, and industrial maintenance companies.
Need Help Choosing the Right Mechanical Ultrasonic Cleaner?
To recommend a suitable model, please provide:
- Part photos
- Material
- Part dimensions
- Type of contamination
- Daily cleaning quantity
- Voltage requirement
- Destination country
- OEM or branding requirements
