Digital Benchtop Ultrasonic Cleaners

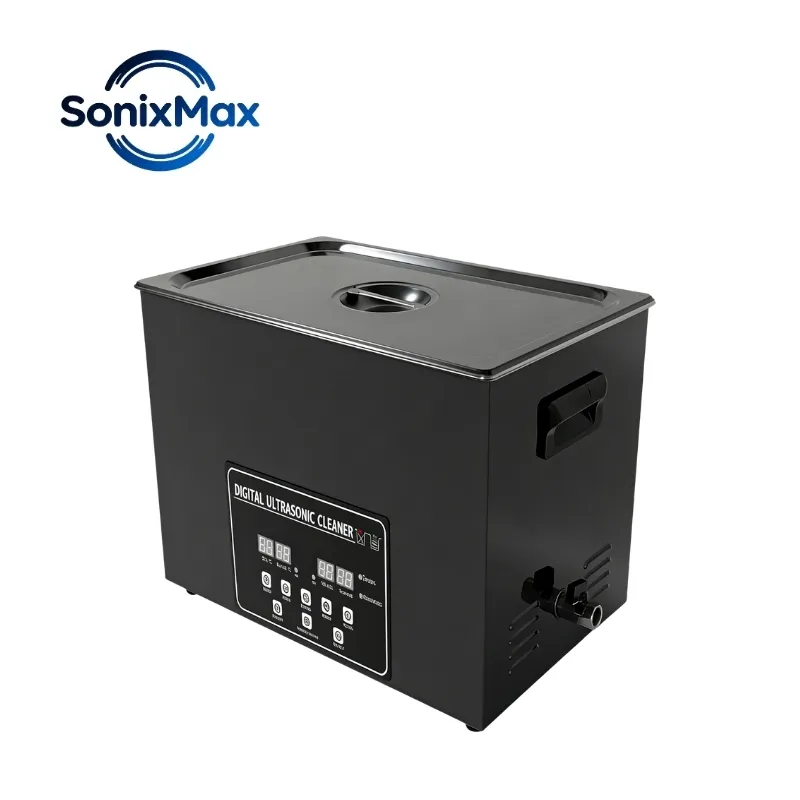

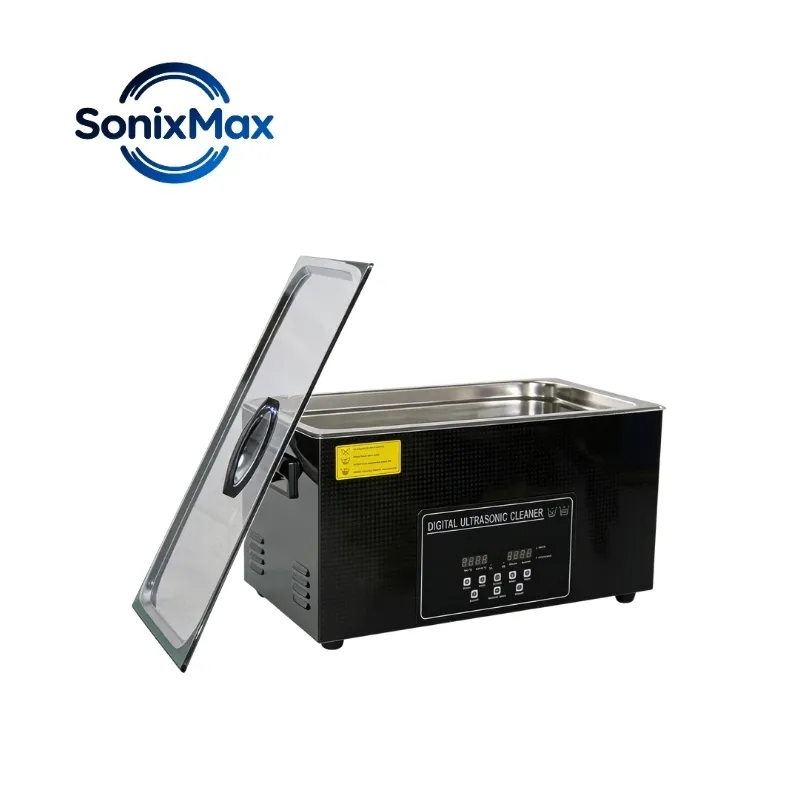

Digital Degas & Sweep Benchtop Ultrasonic Cleaner (2L-30L)
Engineered for high-end precision. The built-in Sweep function eliminates dead zones for uniform cleaning, while the Degas mode preps fresh solutions in minutes. The perfect 2L-30L solution for labs, medical clinics, and delicate electronics.
Product Overview
The SNX-DDS Series is an advanced digital benchtop ultrasonic cleaner equipped with Degas (Deaeration) and Sweep frequency functions. Available in capacities from 2L to 30L, this series is engineered for professional environments where cleaning uniformity and process efficiency are critical.
Standard ultrasonic cleaners can sometimes create "standing waves" (causing uneven cleaning) or require long waiting periods for fresh cleaning solutions to become effective. The SNX-DDS series solves these problems through its integrated Sweep and Degas technologies, providing a more consistent and efficient cleaning process.
Typical End-User Applications:
- Laboratories: Cleaning complex glassware, test tubes, and analytical instruments.
- Electronics Manufacturing & EMS: Removing flux from densely populated PCBs without damaging delicate surface-mount components.
- Medical & Dental: Pre-cleaning surgical and dental instruments with complex hinges and textures.
- 3D Printing: Removing uncured resin from delicate 3D printed parts.
- Precision Optics: Cleaning lenses and optical components without surface etching.
B2B Cooperation Positioning
This product line is specifically configured for:
- Laboratory Equipment Distributors
- Medical and Dental Suppliers
- High-End Electronics Tool Wholesalers
- Professional Equipment Dealers
For distributors, the SNX-DDS series serves as a premium offering in your catalog. The addition of Degas and Sweep functions allows you to target higher-end professional users who require strict quality control in their cleaning processes. SonixMax supports distributors by providing clear technical explanations of these features, ensuring your sales team can effectively communicate the value to end-users.
Product Portfolio
The SNX-DDS Series offers a wide range of capacities to match different professional workflows:
- Compact Capacity (2L - 6L): Designed for dental clinics, optical shops, and small lab stations. The 2L model provides a space-saving footprint for highly targeted precision cleaning.
- Medium Capacity (10L - 15L): Suitable for medical clinics, 3D printing post-processing, and electronics repair centers requiring deeper tanks for medium-sized batches.
- Large Capacity (19L - 30L): Built for industrial labs, larger manufacturing facilities, and automotive precision parts where users need to process larger components with uniform cavitation.
Features & Specifications
Core Features
- Sweep Frequency Function: Continuously varies the ultrasonic frequency slightly around the central 40kHz.
- Why it matters: This eliminates "dead zones" (areas with no cleaning action) and "hot spots" (areas with excessive power that can damage delicate parts), ensuring uniform cleaning across the entire tank.
- Degas (Deaeration) Function: Operates the ultrasonics in intermittent bursts to rapidly force trapped air and dissolved gases out of the liquid.
- Why it matters: Fresh water and cleaning chemicals contain dissolved air that absorbs ultrasonic energy. The Degas function prepares the solution in minutes rather than hours, allowing users to start effective cleaning immediately after a fluid change.
- Digital Control Panel: Enables precise setting of time (0-30 mins) and temperature (20°C-80°C) for repeatable cleaning cycles.
- 40kHz Ultrasonic Frequency: Provides a balanced cleaning action suitable for both robust and delicate professional components.
- SUS304 Stainless Steel Tank: Ensures durability and resistance to standard cleaning chemistries.
Technical Specifications
Product Model | Inner Tank Size (mm) | Capacity | Inner Tank Material | Ultrasonic Power | Frequency | Time Control | Heating Power | Temperature Control |
|---|---|---|---|---|---|---|---|---|
SNX-DDS-2L | 150*140*100 | 2L | SUS304 | 60W | 40KHz | 0-30 MINS | 100W | 20°C-80°C |
SNX-DDS-3L | 240*135*100 | 3L | SUS304 | 120W | 40KHz | 0-30 MINS | 100W | 20°C-80°C |
SNX-DDS-6L | 300*150*150 | 6L | SUS304 | 180W | 40KHz | 0-30 MINS | 300W | 20°C-80°C |
SNX-DDS-10L | 300*240*150 | 10L | SUS304 | 240W | 40KHz | 0-30 MINS | 300W | 20°C-80°C |
SNX-DDS-14L | 300*240*200 | 14L | SUS304 | 300W | 40KHz | 0-30 MINS | 300W | 20°C-80°C |
SNX-DDS-15L | 330*300*150 | 15L | SUS304 | 360W | 40KHz | 0-30 MINS | 300W | 20°C-80°C |
SNX-DDS-19L | 330*300*200 | 19L | SUS304 | 420W | 40KHz | 0-30 MINS | 300W | 20°C-80°C |
SNX-DDS-22L | 500*300*150 | 22L | SUS304 | 480W | 40KHz | 0-30 MINS | 600W | 20°C-80°C |
SNX-DDS-30L | 500*300*200 | 30L | SUS304 | 600W | 40KHz | 0-30 MINS | 600W | 20°C-80°C |
Cooperation Value
SonixMax focuses on building long-term partnerships with distributors. We support your business by providing:
- Advanced Product Positioning: Helping you capture the high-end market segment (labs, medical, precision manufacturing) where standard cleaners fall short.
- Technical Communication: Providing clear explanations of Sweep and Degas technologies so your sales team can confidently address professional buyer requirements.
- Reliable Manufacturing: Ensuring consistent quality control across all capacities to protect your brand reputation.
Channel Support
For wholesale and distributor partners, SonixMax provides:
- OEM Customization: We support private label projects, including logo printing, custom packaging, and tailored control panel designs for bulk orders. [Need confirmation on specific MOQ for OEM]
- Marketing Materials: Access to product images, technical data sheets, and feature explanations to support your e-commerce or catalog listings.
- Regional Configurations: Equipment can be manufactured to meet specific regional electrical standards (e.g., 110V/220V, specific plug types).
Usage Tips & Maintenance
To ensure optimal performance and equipment longevity:
- Always use the Degas function after fluid changes: Whenever you empty the tank and add fresh water and detergent, run the Degas function before placing parts inside. This ensures maximum cleaning efficiency from the first cycle.
- Use the provided basket: Never place items directly on the bottom of the stainless steel tank. This can damage the transducers and void the warranty.
- Maintain fluid levels: Ensure the cleaning solution covers at least 2/3 of the tank depth during operation to protect the heating elements and transducers.
FAQ
Product Selection
Sweep frequency is highly recommended for users cleaning delicate items (like thin glass, PCBs, or precision optics) or complex geometries. It prevents standing waves that can cause uneven cleaning or localized damage to fragile parts.
Technical Questions
How long does the Degas function take to work?
Typically, running the Degas function for 5 to 10 minutes on a fresh tank of cleaning solution is sufficient to remove dissolved gases and optimize cavitation performance.
Request Product Information
Interested in adding the Digital Degas & Sweep Series to your product portfolio? Contact SonixMax to discuss wholesale pricing, OEM options, and technical configurations for your market.
