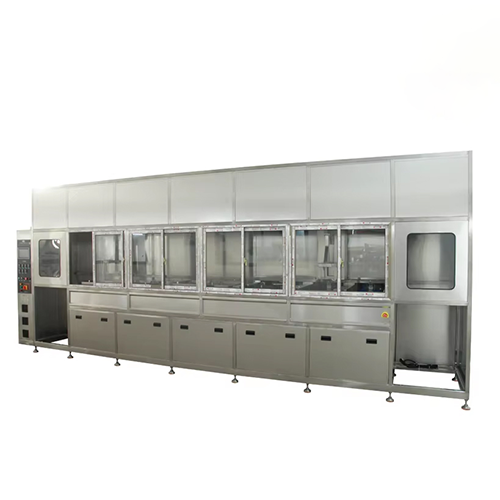

Compact 6‑Tank Ultrasonic Cleaning & Drying Line

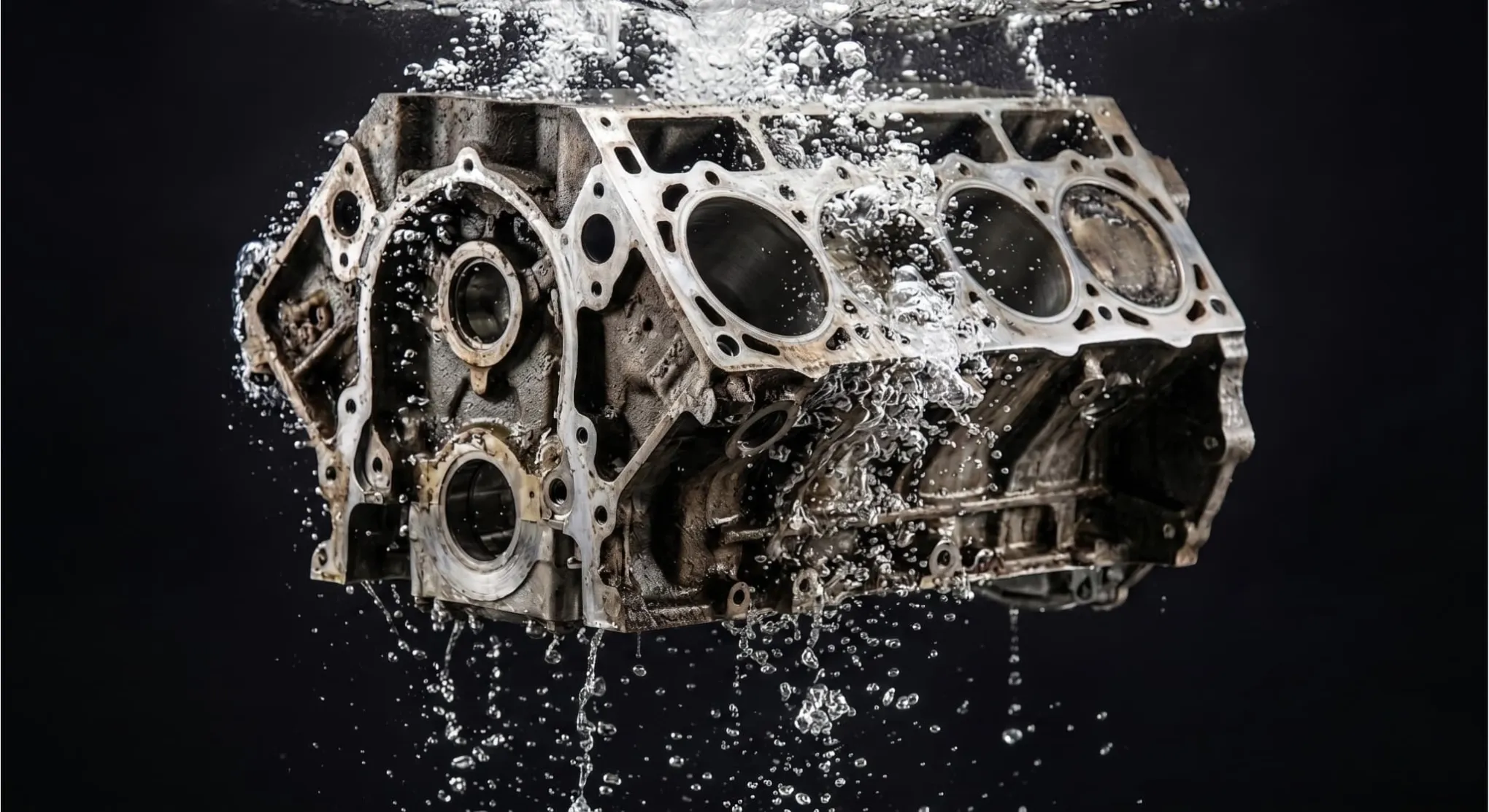

This industrial ultrasonic cleaning system is designed for high‑efficiency, multi‑stage cleaning of engine blocks, molds, hardware, PCBs, and other complex metal parts. It features a 6‑tank inline configuration: ultrasonic cleaning, ultrasonic rinsing, bubble rinsing, air knife cleaning, centrifugal drying, and hot air circulation drying, delivering a complete wash–rinse–dry process in one line.
Each cleaning tank (1–3) is built from corrosion‑resistant SUS316 stainless steel with 40 kHz, 7,200 W ultrasonic power and 18 kW heating, plus filtration and shared throwing agitation for uniform results. Tanks 4–6 use SUS304 stainless steel with powerful air knives and dual drying stages (12 kW each) for fast, low‑residue drying.
Workpieces are carried by a conveyor with stainless baskets, and the system includes manual water valves and a high‑pressure blower with air filter. Ideal for automotive, mold, and precision manufacturing applications requiring consistent, high‑cleanliness results.
