Household Ultrasonic Cleaner
180ml Household Ultrasonic Cleaner with 4 UVC Lights & Transparent Window | OEM/ODM
Compact 180ml household ultrasonic cleaner with 40kHz cleaning, 28W power, 5/10-minute cycles, four UVC lights, digital display and a transparent viewing window. Designed for compatible jewelry, eyewear and personal-care items. Available for OEM/private-label projects with custom logo, retail packaging, machine colors and private mold development.
Product Overview
The SNX-HH320 is designed for household and personal-care product lines where brands want to combine ultrasonic cleaning with a more visible, interactive consumer experience.
Its 180ml tank provides space for compatible small everyday items, while the transparent window allows users to see the cleaning process without opening the lid. The digital display and two preset cleaning cycles keep operation straightforward, and the four integrated UVC lights add another functional element to the product concept.
With overall dimensions of approximately 122 × 122 × 104 mm, the SNX-HH320 remains compact enough for countertop, vanity, bathroom, and other household environments.
For B2B buyers, this model is particularly relevant for jewelry-care, eyewear-care, lifestyle, personal-care, and other consumer product lines where visible operation and multiple functions help differentiate the finished retail product.
Key Selling Points for Brands
Transparent Viewing Window for a More Visible User Experience
The SNX-HH320 incorporates a transparent viewing window in the lid, allowing users to see inside the tank while the machine is operating.
For consumer brands, this creates a more engaging product experience than a fully enclosed cleaner and gives the product a visible design feature that can be communicated clearly through ecommerce images, retail packaging, and demonstration content.
4 UVC Lights with Independent Product Positioning
The standard configuration includes four UVC lights integrated into the cleaning system.
This gives brands an additional functional feature alongside ultrasonic cleaning. Any sterilization, disinfection, or antibacterial performance claims should only be used when supported by applicable test data or documentation for the final ordered configuration.
5 / 10-Minute Digital Cleaning Cycles
The SNX-HH320 provides two preset cleaning times:
5 minutes / 10 minutes
The digital display makes cycle selection easy to understand, while the two timer options provide additional flexibility compared with a single fixed-cycle household cleaner.
40kHz Ultrasonic Cleaning with 28W Rated Power
The SNX-HH320 operates at 40kHz ±3 with 28 ±5W ultrasonic power.
This configuration is designed for compatible household and personal-care cleaning applications where users need to remove everyday residue from small items while keeping operation simple.
Cleaning suitability still depends on the item material, surface condition, contamination, cleaning liquid, and exposure time.
AC-Powered Countertop Design
Unlike rechargeable models, the SNX-HH320 uses an AC-powered configuration intended for regular countertop use.
For brands, this creates a different product position from portable cordless models: the emphasis is on continuous household availability, digital control, and multiple integrated functions rather than mobility.
Technical Specifications
Specification | SNX-HH320 |
|---|---|
Product Type | Household Ultrasonic Cleaner with UVC |
Model | SNX-HH320 |
Tank Capacity | 180 ml |
Inner Tank Size | Ø87 × 38 mm |
Overall Dimensions | 122 × 122 × 104 mm |
Ultrasonic Frequency | 40kHz ±3 |
Ultrasonic Power | 28 ±5W |
Timer Settings | 300 / 600 seconds |
Cleaning Cycles | 5 / 10 minutes |
UVC Lights | 4 pcs |
Display | Digital |
Viewing Window | Transparent |
Power Type | AC Powered |

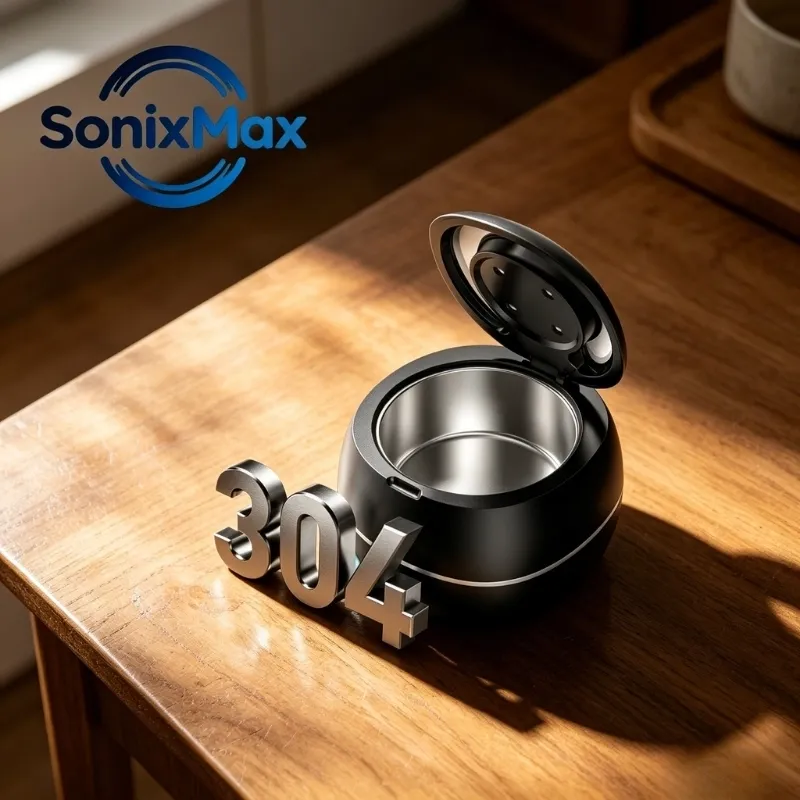

Inner Tank Material | 304 Stainless Steel |
Net Weight | 475 g, including power cable |
Gross Weight | 520 g |
Individual Package Size | 128 × 128 × 153 mm |
Specifications are based on the supplied SNX-HH320 product information. Final specifications should be reconfirmed according to the selected OEM/ODM configuration before bulk production.
Typical Applications
The 180ml tank makes the SNX-HH320 suitable for consumer product concepts involving compatible small everyday items such as jewelry, small accessories, selected eyewear, and personal-care items that fit within the Ø87 × 38 mm tank.
The transparent lid and digital interface make this model particularly suitable for brands that want the cleaning process to be more visible to the end user.
For application-specific private-label projects, representative items should be tested before final consumer-use claims are established.
OEM / ODM Customization
The SNX-HH320 can be developed as a private-label household ultrasonic cleaner according to your branding, packaging, and product requirements.
Customization | MOQ | Available Options |
|---|---|---|
Logo Printing | 500 units | Free logo printing on the machine |
Custom Color Box | 1,000 units | Customized retail packaging and brand artwork |
Custom Machine Color | 2,000 units | Housing color customized for your brand |
Private Mold Development | Project-based | Product-specific appearance and structural development |
For brands testing a new product category, logo customization offers a straightforward starting point. Custom packaging and machine colors can be introduced when stronger visual differentiation is required.
For projects that require more substantial product differentiation, private mold development can be discussed separately according to the intended product concept.
Quality & Project Confirmation
For OEM and private-label projects, the final product configuration should be confirmed before bulk production, especially when branding, packaging, machine color, or other product elements are changed.
For the SNX-HH320, UVC-related claims used in retail materials should correspond to documentation applicable to the final ordered configuration. The same applies to any destination-market compliance or product-performance claim.
For customized projects, sample evaluation can be used to confirm the final product together with branding, packaging, and other agreed project requirements before mass production.
Packaging & Export Information
The SNX-HH320 is packed for bulk export and private-label distribution. Standard packing information is shown below.
Packaging Specification | Details |
|---|---|
Individual Package Size | 128 × 128 × 153 mm |
Units per Carton | 24 units |
Master Carton Size | 535 × 405 × 330 mm |
Carton Gross Weight | Approx. 12.5 kg |
For OEM/private-label orders using custom color boxes or other packaging configurations, the final carton size, packing quantity, and gross weight should be reconfirmed after the packaging design is finalized.
Usage Tips & Suggested Cleaning Time
The SNX-HH320 provides 5-minute and 10-minute preset cycles, making it easy to create simple end-user instructions.
Contamination Level | Typical Examples | Suggested Starting Cycle |
|---|---|---|
Light to Moderate | Dust, fingerprints, light skin oils, fresh everyday residue | 5 minutes |
Moderate to Heavier | Visible oils, cosmetic residue, accumulated everyday dirt | 10 minutes |
Persistent Residue | Residue remaining after one suitable cycle | Inspect before repeating |
These are general starting recommendations rather than guaranteed cleaning times. Actual performance depends on the item material, surface condition, type of contamination, cleaning liquid, and how strongly the residue is attached.
Tips for Better Cleaning Results
Start with the 5-minute cycle for lighter everyday contamination and use the 10-minute cycle when more cleaning time is appropriate.
Make sure the item fits comfortably within the tank and avoid tightly stacking multiple objects. Coated, plated, bonded, assembled, or already-damaged items should be inspected before ultrasonic cleaning.
After use, empty and wipe the 304 stainless steel tank and keep the power connection area dry.
FAQ
Can users see the cleaning process while the machine is running?
Yes. The transparent viewing window allows users to see inside the tank during operation, which can make the product more visually engaging for household use and demonstration content.
What do the four UVC lights do?
The SNX-HH320 includes four UVC lights as part of the standard product configuration. Any specific sterilization, disinfection, or antibacterial performance claim should only be made when supported by applicable documentation or test data.
Discuss Your OEM/ODM Project
The SNX-HH320 is a suitable platform for brands looking for a compact AC-powered household ultrasonic cleaner with digital control, visible operation, and multiple integrated functions.
Its combination of a 180ml tank, 40kHz ultrasonic cleaning, 5/10-minute cycles, four UVC lights, and a transparent viewing window creates a different product concept from both basic household models and portable rechargeable cleaners.
Tell us your target market, intended application, expected order quantity, and branding or packaging requirements so we can discuss whether the SNX-HH320 fits your product line.
