Household Ultrasonic Cleaner
140ml Rechargeable Household Ultrasonic Cleaner with Type-C Charging | OEM/ODM
Compact 140ml rechargeable household ultrasonic cleaner with 43kHz cleaning, 3000mAh polymer battery, Type-C charging, battery percentage display, 3/5-minute cleaning cycles, and IPX5-rated housing. Designed for jewelry, eyewear, personal-care and other compatible small items. OEM/ODM options include logo printing, custom packaging, machine colors and private mold development.
Product Overview

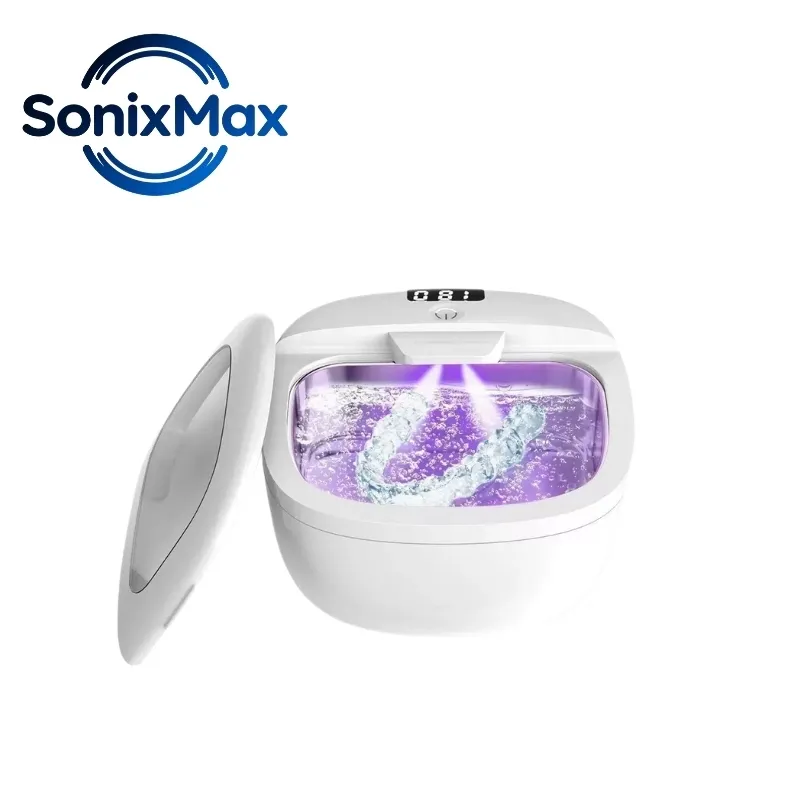

The SNX-HH190 is designed around a simple idea: combining ultrasonic cleaning with the portability expected from modern rechargeable consumer products.
Its 140ml tank and 105 × 104 × 64 mm body keep the machine compact, while the built-in 3000mAh polymer battery allows cordless operation without requiring a continuous power connection. Type-C charging and a percentage display make battery status and charging easier to manage in everyday use.
With two preset cleaning cycles and a lightweight 300g body, the SNX-HH190 is particularly relevant for brands developing compact jewelry-care, eyewear-care, personal-care, travel, or lifestyle product lines.
Key Selling Points for Brands
Compact Rechargeable Design
The 140ml tank, 300g net weight, and compact dimensions give the SNX-HH190 a different product position from larger countertop ultrasonic cleaners.
Rather than maximizing capacity, this model focuses on portability and convenient everyday use—useful for brands targeting personal-care, lifestyle, travel, and small-space product concepts.
3000mAh Battery with Type-C Charging
The built-in 3000mAh polymer battery provides approximately 50 minutes of battery operation under the specified conditions.
Type-C charging and a battery percentage display work together to create a more familiar rechargeable-product experience, allowing users to check the remaining charge directly instead of relying only on a basic battery indicator.
3 / 5-Minute Ultrasonic Cleaning
The SNX-HH190 operates at 43kHz with 15W rated power and provides two preset cleaning times:
3 minutes / 5 minutes
The simple two-cycle interface keeps everyday operation straightforward while giving users additional cleaning time when required for compatible items.
IPX5 Housing & Household Construction

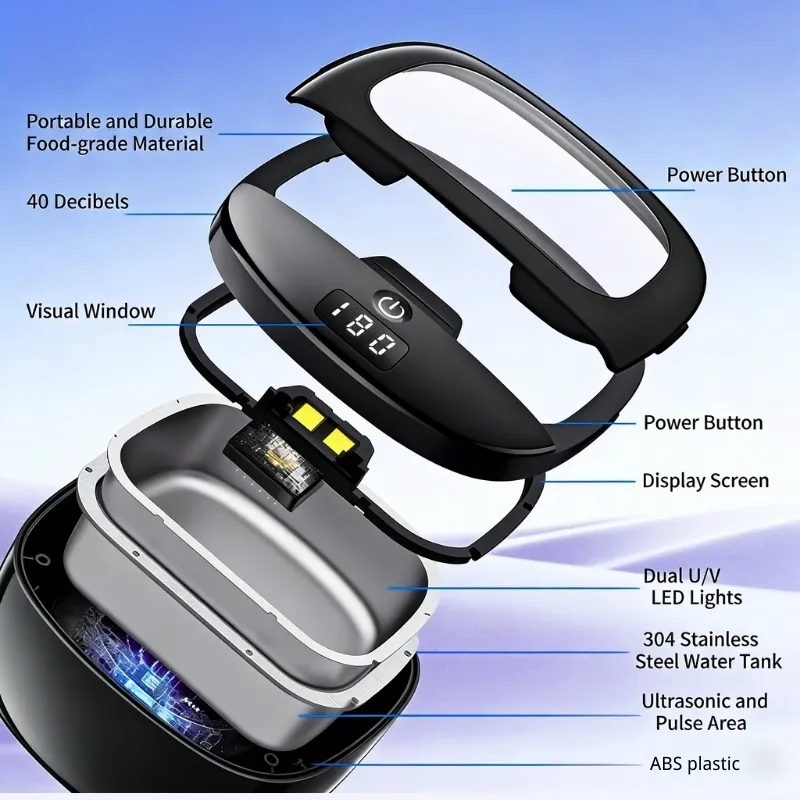

The complete machine is specified with an IPX5 water-resistance rating and combines an ABS/PMMA exterior with a 304 stainless steel inner tank.
This configuration is designed for a household product regularly used around water. IPX5 does not mean the complete machine can be immersed, and final water-resistance claims should correspond to documentation for the ordered configuration.
Technical Specifications
Specification | SNX-HH190 |
|---|---|
Product Type | Rechargeable Household Ultrasonic Cleaner |
Model | SNX-HH190 |
Tank Capacity | 140 ml |
Inner Tank Size | 71 × 95 × 31 mm |
Overall Dimensions | 105 × 104 × 64 mm |
Ultrasonic Frequency | 43kHz |
Rated Power | 15W |
Timer Settings | 180 / 300 seconds |
Cleaning Cycles | 3 / 5 minutes |
Battery Type | Polymer Battery |
Battery Capacity | 3000mAh (3 × 1000mAh, 11.1V) |
Battery Operation | Approx. 50 minutes |
Charging Interface | Type-C |
Battery Percentage Display | Yes |
Water Resistance | IPX5 |
Materials | ABS + PMMA + 304 Stainless Steel |
Net Weight | 300 g |
Gross Weight | 390 g |
Specifications are based on the standard SNX-HH190 configuration. Final specifications should be confirmed according to the selected OEM/ODM configuration before bulk production.
Typical Applications
The compact tank and rechargeable design make the SNX-HH190 suitable for consumer product concepts involving compatible small items such as:
- Jewelry and small accessories
- Eyeglasses and optical-care items
- Selected personal-care items
- Other suitable small household items
Because this model uses a compact 71 × 95 × 31 mm inner tank, brands should evaluate intended items according to their actual dimensions rather than tank capacity alone.
For application-specific private-label projects, representative items should be tested before finalizing consumer-use claims.
OEM / ODM Customization
The SNX-HH190 can be developed as a private-label rechargeable ultrasonic cleaner according to your branding, packaging, and product requirements.
Customization | MOQ | Available Options |
|---|---|---|
Logo Printing | 500 units | Free logo printing on the machine |
Custom Color Box | 1,000 units | Customized retail packaging and brand artwork |
Custom Machine Color | 2,000 units | Housing color customized for your brand |
Private Mold Development | Project-based | Product-specific appearance and structural development |
For brands testing a new product category, logo customization provides a relatively simple starting point. Custom packaging and machine colors can be introduced when greater brand differentiation is required.
For projects that require a more distinctive product rather than standard private labeling, private mold development can be discussed separately according to the intended product concept.
Quality & Project Confirmation
For OEM and private-label projects, the final product configuration should be confirmed before bulk production, particularly when changes are made to the standard product, branding, or packaging.
For the SNX-HH190, customized versions should be reviewed against the agreed sample and project requirements. Any water-resistance or market-specific compliance claims used in retail materials should be based on documentation applicable to the final ordered configuration.
For application-specific projects, sample evaluation is also recommended before finalizing consumer-use claims and moving to mass production.
Packaging & Export Information
The standard SNX-HH190 packaging configuration is:
Packaging Specification | Value |
|---|---|
Individual Package Size | 133 × 133 × 104 mm |
Units per Master Carton | 30 units |
Master Carton Gross Weight | Approx. 14 kg |
Master Carton Dimensions | 545 × 415 × 288 mm |
For OEM projects using customized retail packaging, final carton dimensions, carton quantity, and weight should be reconfirmed after the packaging configuration is finalized.
Usage Tips & Suggested Cleaning Time
The SNX-HH190 provides 3 and 5-minute preset cycles, giving consumers a simple way to select a starting cleaning time according to the amount of contamination.
Contamination Level | Typical Examples | Suggested Starting Cycle |
|---|---|---|
Light | Dust, fingerprints, light skin oils, fresh surface residue | 3 minutes |
Moderate | Visible oils, cosmetic residue, accumulated everyday dirt | 5 minutes |
Persistent Residue | Residue remaining after the first appropriate cycle | Inspect before repeating |
These are general starting recommendations rather than guaranteed cleaning times. Actual performance depends on the material, surface condition, contamination, cleaning liquid, and item geometry.
Tips for Better Cleaning Results
Start with the 3-minute cycle for lightly contaminated items and use the 5-minute cycle when additional cleaning time is appropriate. For persistent residue, inspect the item before repeating the cycle rather than automatically extending the cleaning time.
Items should fit comfortably inside the tank without being tightly stacked. Coated, plated, bonded, assembled, or already-damaged items should be checked carefully before ultrasonic cleaning.
After use, empty and wipe the stainless steel tank and keep the Type-C charging interface dry. The IPX5 rating does not mean the complete machine should be immersed in water.
FAQ
How long can the SNX-HH190 operate on battery power?
The specified battery operating time is approximately 50 minutes. Actual operating time may vary according to usage conditions and the final product configuration.
What does the IPX5 rating mean?
The complete machine is specified with an IPX5 water-resistance rating. This is relevant for normal household use around water, but it does not mean that the complete cleaner can be submerged.
Develop the Rechargeable Ultrasonic Cleaner for Your Brand
The SNX-HH190 combines a compact 140ml format, rechargeable cordless operation, Type-C charging, battery percentage display, IPX5 housing, and simple 3/5-minute ultrasonic cleaning in a consumer-oriented product platform.
For consumer brands, D2C businesses, retailers, importers, and private-label projects, SonixMax supports different levels of customization—from logo and retail packaging to machine colors and deeper ODM development.
Send us your target market, intended application, expected order quantity, and customization requirements to discuss the appropriate SNX-HH190 configuration for your project.
